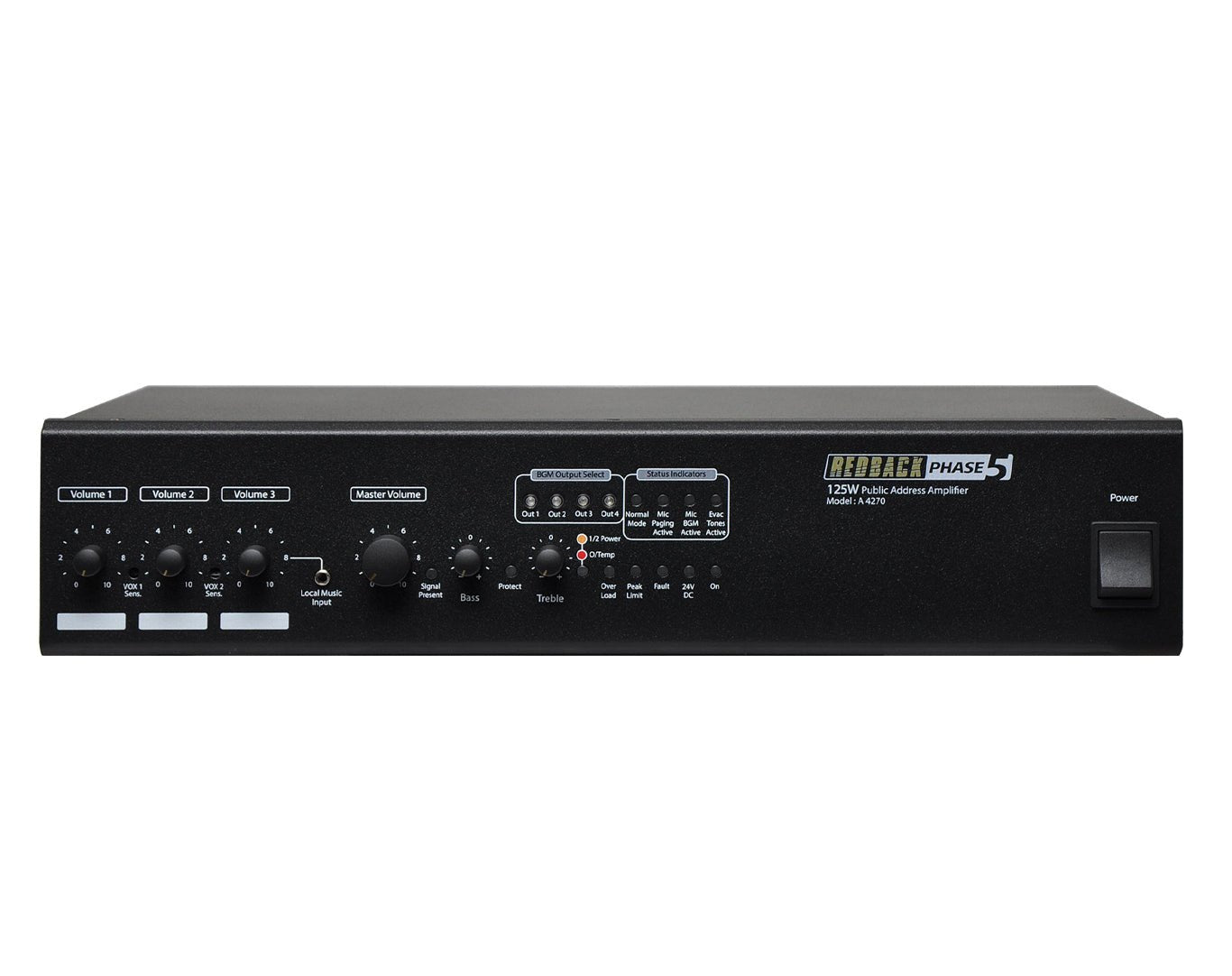

Redback 4 Zone 125 Watt 100V Public Address Mixer Amplifier A4270
Couldn't load pickup availability
What we offer
All orders are shipped within one business day of purchase. Our cutoff is 11am Mon-Fri and any purchase made before 11am is dispatched same day.
Our couriers include Australia Post, Aramex, Couriers Please and Direct Freight Express. Tracking numbers are made available at the time of dispatch.
EASY RETURNS
If you change your mind you're welcome to return the item within 30 days of purchase for a full refund or exchange. All items must be in their original condition, including all packaging.
ONE YEAR WARRANTY
Shop with peace of mind! All orders are coveredby a full one year warranty at the time of purchase.If your product is not performing as expectedcontact us for return / refund options.
ONLINE SUPPORT
Have a question? Click the chat box below forreal-time chat with one of our friendly staff members.Out of hours? Leave us a message and we’llemail you back within one business day.
This Redback 4 Zone 125 Watt 100V Public Address Mixer Amplifier is similar in functionality to the A 4377/A4387 amplifiers with the addition of four 100V line output zones.
During normal use, you are able to select via the front panel switches, any zone on or off to control BGM programming. Remote paging to each zone is made possible by connecting the A 4660A paging console to the amplifier via Cat6 cable (2 consoles @ max 300m).
This allows for paging to selected zones or all call, muting BGM to all zones. At the completion of the announcement, music will be restored to previously selected zones. BGM can also be selected on or off to all zones remotely from the paging console.
When using the paging console, these microphones assume priority between input 1 and input 2 on the amplifier. If two consoles are connected, they operate on a first in, first served basis, activating a system busy indicator on the inoperative console.
- FEATURES
- Multi-stage thermally cued fan cooling
- 2U 19” rack mount (with optional A 4376)
- Tape record out terminals
- Provision for connection to Redback A4660 touchscreen paging console
- MP3 based Alert/Evac tones with MP3 voice over message for emergency tones (built in)
- 3 mic input and 4 auxiliary inputs
- Phantom powering available on all inputs
- Adjustable vox muting on inputs 1 & 2.
- Bass and treble tone controls
- Terminals for 100V line output
- 240V AC or 24V DC power operation
- Thermal & fuse overload protection
- Built in short circuit protection
- Australian designed & assembled
- SPECIFICATIONS
- Power output: 125W
- Distortion: <0.5% @ 1kHz
- Output line: 100V
- Frequency response: 50Hz - 12kHz, -3dB
- Line inputs: 300mV
- Mic line sensitivity: 3mV balanced
- Mic input: >75dB below rated output
- Line inputs: >81dB below rated output
- Speaker connection: Pluggable terminals
- Power connection: IEC or 24VDC pluggable terminal
- Audio inputs: 3 pin XLR, stereo RCA, 3.5mm jack
- Controls: Volume (3), Bass, Treble, Master, Zone Selection (4)
- Bass adjustment: ±10dB @ 100hz
- Treble adjustment: ±10dB @ 10kHz
- Indicators: Power, 24VDC, Fault, Peak Limit, Over Load, Paging Active
- Fuse protection: 7.5A AC, 10A DC
- Power: 240V AC or 24V DC (nominal)
- Dimensions: 483 x 270 x 88mm
